Use the PVW (Preview) selector on the top panel to choose the view displayed on the preview monitor.
You can select one from the following four views to display.

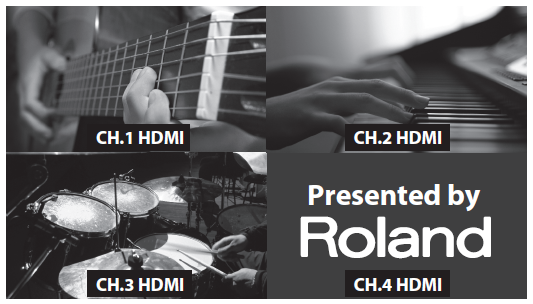

| INPUT | This displays the input source picture using a four-way split screen. (The display frame rate of the preview drops when this setting is used.) |
| PST | The picture of standby channel is displayed. |
| PGM | The picture on the current output channel is displayed. |
| DSK |
This previews the status of DSK composition. Adjust the amount of keying in this mode. |
* When [INPUT] has been selected, a red border is displayed around the channel of current program output. A green border is displayed around the channel that is on standby.
* The input source pictures are displayed in the preview monitor directly (without any parameter changes). Settings such as color adjustment or scaling are not applied.
When [INPUT] has been selected, the frame rate drops by about 5 fps. The frame rate does not fall when a setting other than [INPUT] is selected.
When the source signal is interlace, the displayed image moves up and down for 1 line width.
You can change the text labels for [CH 1] through [CH 4]. Refer to “Changing the Preview Labels”
About SD Source Preview
When the source is SD, the display does not use the entire screen. The display is as follows.
