GR-55: How to adjust the CTL Pedal HOLD Function Parameters
NOTE: User will have to choose to EDIT this globally under SYSTEM EDIT PAGE or PATCH specific under MASTER EDIT PAGE
You can adjust this globally under SYSTEM EDIT PAGE:
1. Press EDIT > use PAGE LFT/RT ARROWS < >.
2. Use PAGE RT ARROW > to select SYSTEM EDIT PAGE.
3. Use DIAL WHEEL or CURSOR BUTTONS and select PEDAL GK/CTL press ENTER.
4. Use DIAL WHEEL or CURSOR BUTTONS to adjust CTL FUNCTION: to HOLD PARAMETERS

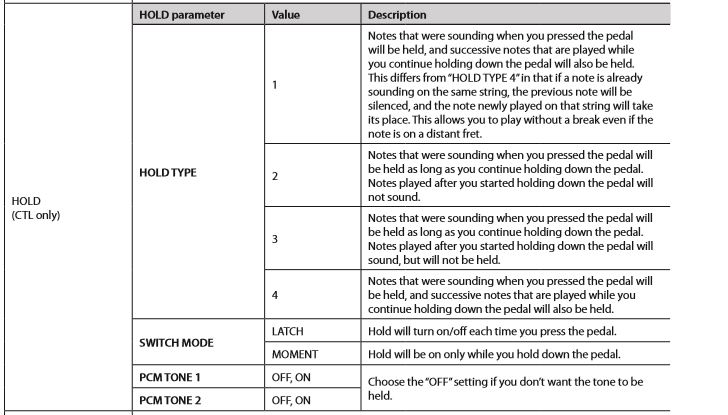

5. Adjust HOLD PARAMETERS: HOLD TYPE, SWITCH MODE, PCM TONE 1, PCM TONE 2. (SEE IMAGE BELOW)
OR if it's PATCH specific leave SYSTEM EDIT PAGE: PEDAL GK/CTL, CTL FUNCTION: set to PATCH SETTING
and customize settings in MASTER EDIT PAGE instead.
MASTER EDIT PAGE
1. Press EDIT > use PAGE LFT/RT ARROWS < >
2. Use PAGE RT ARROW > to select MASTER MENU PAGE.
3. Use DIAL WHEEL or CURSOR BUTTONS to PEDAL GK/CTL press ENTER.
4. Use DIAL WHEEL or CURSOR BUTTONS to adjust CTL FUNCTION: to HOLD PARAMETERS.
5. Adjust HOLD PARAMETERS: HOLD TYPE, SWITCH MODE, PCM TONE 1, PCM TONE 2. (SEE IMAGE BELOW)
After customizing parameter settings test settings by playing and activate HOLD with the CTL PDL.
