The following article guides through setting up the GO:MIXER with a standard (dynamic) microphone.
Note: The Go:Mixer does not supply phantom power that is required for condenser microphones. The following article has information regarding using a condenser microphone:
https://www.roland.com/us/support/by_product/gomixer/support_documents/
CONNECTIONS

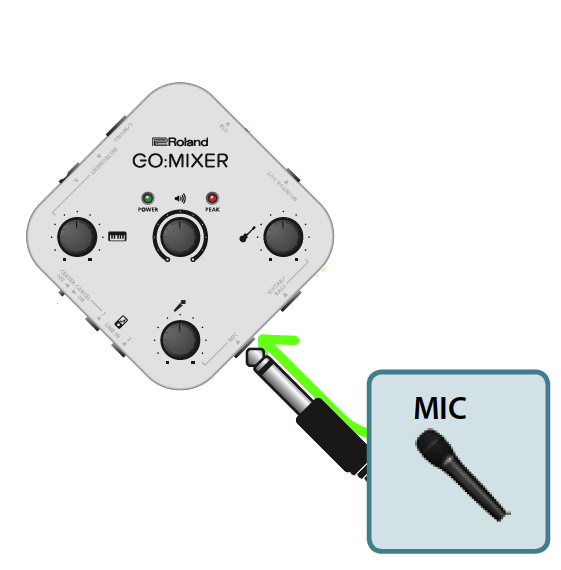

- Connect the microphone to the microphone port of the GO:MIXER.
IMPORTANT NOTE: Use only an unbalanced cable (also know as TS OR Tip/Sleeve) when connecting to the microphone input of the GO:MIXER.
- Connect the tagged end of the supplied USB cable to the GO:MIXER and the other end to the iPhone or Android device.
- Use the supplied USB cable only. 3rd pary USB cables are not compatible.
- Do not connect the included USB cable to any device other than this unit.
- If the GO:MIXER does not power on:
Be sure that the phone that's being used is compatible:
https://www.roland.com/us/support/by_product/gomixer/support_documents/ - Connect either headphones or speakers to the MONITOR OUT jack. If using speakers, turn them on and turn their volume up.
ADJUSTING THE VOLUME
- Turn the MASTER LEVEL
completely counter-clockwise (off). - If using a microphone that has an ON/OFF switch, set this to ON.
- Be sure that the external phantom power's box is on. Check the documentation for information regarding how to be sure it's power is on.
- Lower the volume of any unused inputs on the GO:MIXER.
- While talking or singing into the mic, slowly raise the microphone knob
clockwise until the "PEAK" light on the GO:MIXER illuminates only occasionally.
Slowly raise the MASTER LEVEL to hear the audio.
