By using keyboard switch groups to collectively turn on/off the keyboard switch of multiple groups, you can switch multiple sounds in a single operation. This is convenient when you want to seamlessly switch between multiple sounds inside a Studio Set.
You can save up to 16 combinations of keyboard switches as keyboard switch groups, and use the pads to switch between them in a studio set.
You can also use the "Virtual Pad" setting to use the category/favorite buttons to switch the first 8 groups.
MEMO
Preset studio sets 65–69 contain keyboard switch groups for
you to try out.
Operation flow
1 Setting the Pad Function (Pad Mode) to Keyboard Switch Group
2 Specifying a Keyboard Switch Group
3 Selecting a Keyboard Switch Group to Switch Sounds
Before you make keyboard switch group settings you must be in a Studio Set.
The Keyboard switch Groups are saved within a Studio Set.
Press the [SPLIT] button and [DUAL] button simultaneously to
put the FA in STUDIO SET mode.
Setting the Pad Function (Pad Mode) to Keyboard Switch Group
1. Press the [PAD UTILITY] button.
2. Press the [6] (Pad Mode) button.
3. Press pad [8] (KBD SW GROUP).
Specifying a Keyboard Switch Group
For each group, specify the keyboard switches (Pads) that you want to be
on or off.
1. Press the [PAD UTILITY] button.

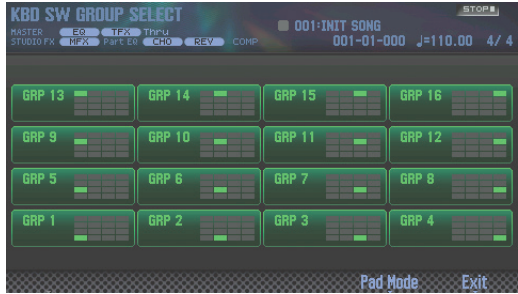

The KBD SW GROUP SELECT screen appears.
2. Press a pad [1]–[16] to select the group (1–16) that you want to edit.
The pad number corresponds to the group number.
3. Press the [2] (Edit) button.

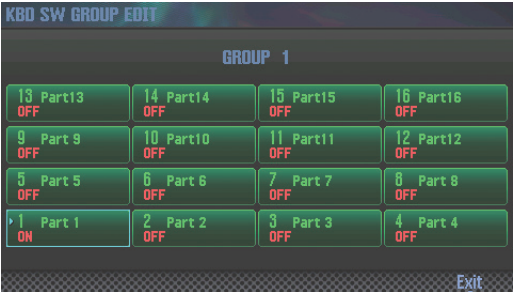

The KBD SW GROUP EDIT screen appears.
Note: At this time, you can also access the KBD SW GROUP EDIT
screen by pressing the SAMPLER section’s [BANK] button.
4. Use pads [1]–[16] to turn the keyboard switches on/off.
The pad number corresponds to the part number.

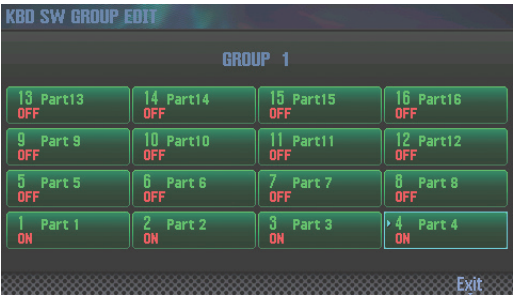

Example setting) For group 1, turn on the keyboard switch of parts 1–4
5. Press the [7] (Exit) button to return to the KBD SW GROUP SELECT screen.
6. As necessary, repeat steps 2–5 to edit the settings of other groups.
7. Press the [EXIT] button to return to the top screen.
8. If you want to save the settings, save the studio set.
Selecting a Keyboard Switch Group to Switch Sounds
1. Press one of the pads [1]–[16].
The sounds are switched according to the settings of the
keyboard switch group.
NOTE:
If you want to edit the keyboard switch group settings while
viewing the multi part play screen, press the SAMPLER section’s [BANK] button.
While the [BANK] button is lit, you can use pads [1]–[16] to specify the on/off status
of each part’s keyboard switch.
Lit pads indicate parts whose keyboard switch is on.
When you finish making settings, press the [BANK] button
once again to make it go dark.
