RC-300: Rhythm Guide Basics

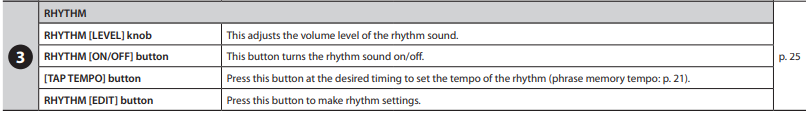

RHYTHM GUIDE [ON/OFF] button: Use to activate or deactivate.
RHYTHM LEVEL KNOB: Use to adjust RHYTHM LEVEL 0-200.
RHYTHM GUIDE TAP TEMPO: Tap button twice to tap in tempo.
NOTE: When RHYTHM GUIDE is active, any TRACK [STOP] FOOT SWITCH can be used to TAP TEMPO. Press the [STOP] foot switch three times consecutively at the tempo preferred.
RHYTHM GUIDE [EDIT] button to adjust the following:
PATTERN: Use the MEMORY VALUE KNOB to select from 56 Rhythm Patterns
Owner's Manual p. 27
BEAT: Use the MEMORY VALUE KNOB to select the Time Signature for the BEAT:
2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 5/8, 6/8, 7/8, 8/8, 9/8, 10/8, 11/8, 12/8, 13/8, 14/8, 15/8
RECORD COUNT: OFF/1 MEASURE. Use for RECORD COUNT-IN.
PLAY COUNT: OFF/1 MEASURE. Use for PLAYBACK COUNT-IN.
STOP: OFF REC/END. Use to STOP after the first pass of LOOP.
OUTPUT: MAIN/SUB/MAIN+SUB. Use to change the RHYTHM GUIDE OUTPUT
MAIN = MAIN OUTPUT and PHONES OUT.
SUB = SUB OUTPUT and NOT MAIN or PHONES OUT. (Good if monitoring tempo from PHONES)
MAIN+SUB = MAIN + SUB OUTPUT and PHONES OUT.
RHYTHM GUIDE settings may be set before recording any TRACKS in a MEMORY LOCATION or after creating a LOOP in a track.
RHYTHM GUIDE settings can be WRITE/SAVED to any MEMORY LOCATION.
