The FA-06, FA-07, and FA-08 can connect to an Apple iOS device via USB using the Apple Camera Connector Kit (or the Lightning to USB Camera Adapter for newer iOS models with the lightning connector). Use the following procedure to set up this connection:
Set the USB Driver in the FA-06/07/08 to "Generic."

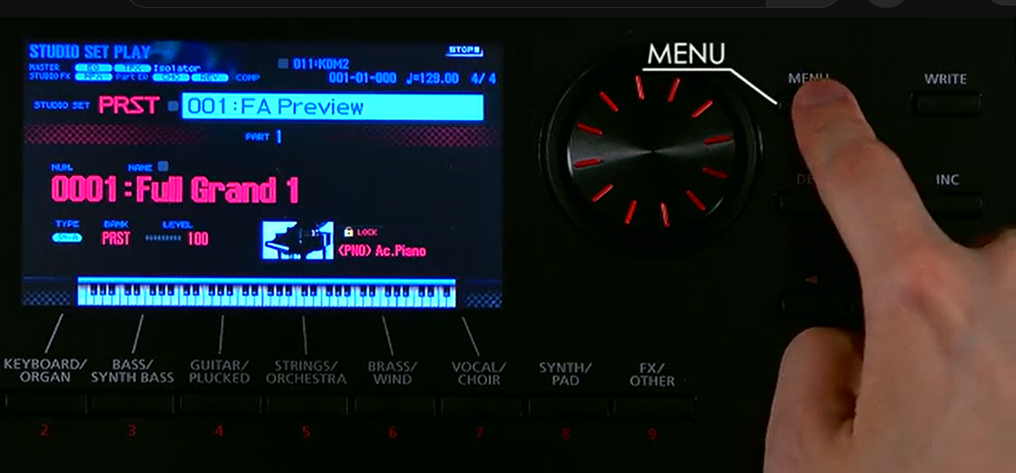

- Press the [MENU] button.
The MENU screen appears. - Move the cursor to "System" and press the [ENTER] button.

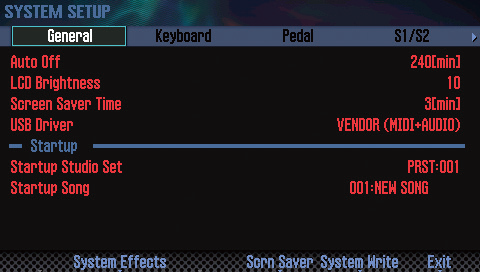

- Use the cursor buttons to select the "General" tab at the top of the screen.
- Use the cursor buttons to select "USB Driver" and use the dial to select "GENERIC (MIDI only)."
- Press the #6 button under the screen (WRITE) to confirm the setting.
- Power off, then back on the FA-06/07/08.
Connect to the iOS Device
Connect a USB cable from the USB COMPUTER (square) connector on the back panel of the FA-06/07/08 to the Apple Camera Connector Kit, which connects directly to the iPad. This will allow you to use the FA-06/07/08 with any iOS applications that can connect to a MIDI device.
