Arpeggio
The SH-01A has an auto arpeggio function that automatically generates arpeggios according
to the keys that you hold down.

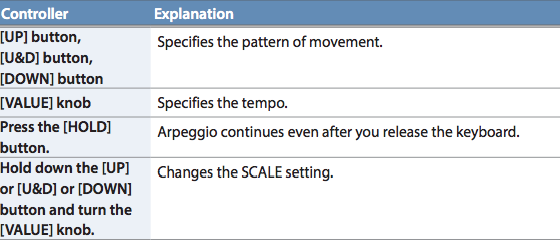

Playing arpeggios
1. Press the [UP], [U&D], or [DOWN] button.
The indicator is lit.
2. Press two or more keys simultaneously.
An arpeggio plays.
* The SH-01A’s arpeggio function works only when you hold down multiple keys
simultaneously; you can play normally by playing single notes non-legato (releasing the
previous key before pressing the next key).
Turning the arpeggio function off
1. Once again press the button that’s on (whose indicator is lit).
You return to normal playing.
Note
* If you press the notes of the chord at inconsistent timings, the beginning of the arpeggio
might be disordered. Press the notes of the chord simultaneously.
* Unless the hold setting is turned on, the arpeggio repeats as long as you hold down the keys.

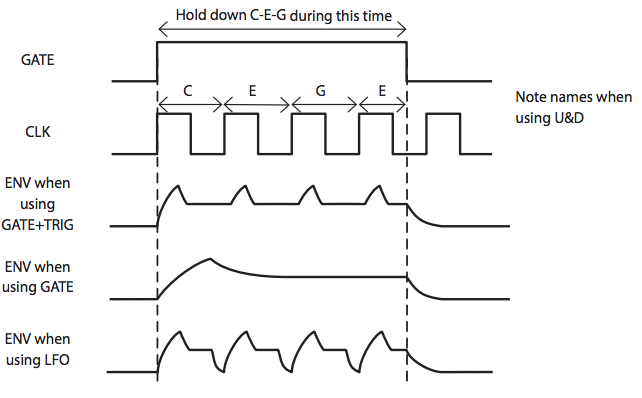

* The way in which the arpeggio plays depends on how the envelope generator’s gate trigger
select switch is set.
If this switch is in the GATE position, and the ADSR is set to produce a decaying sound (S=0),
the sound stops when the envelope ends.
