TD-02K, TD-02KV: Can I use this product for double bass drum or twin pedal playing?

Yes, you can. Follow the methods below to use the TD-02K or TD-02KV for double bass drum or twin pedal playing.

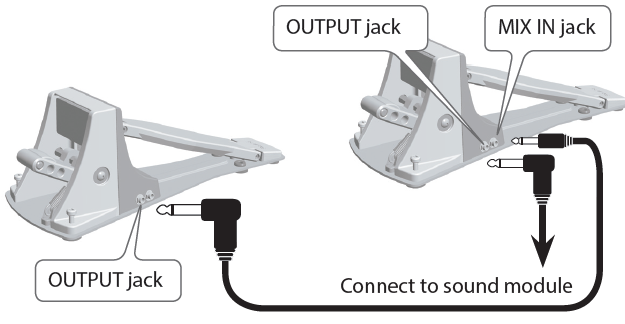

Connecting the KT-1 (included) to the KT-10 (sold separately)

1. Connect the KIK plug of the dedicated cable to the OUTPUT jack of the kick pedal (KT-1 or KT-10) on the first unit.
2. Connect the MIX IN jack of the first kick pedal to the OUTPUT jack of the second kick pedal (KT-10 or KT-1) using the cable supplied with the KT-10.




3. Select the connected kick pedal for the PAD Type.

   1. Press the [MENU] button.
   2. Use the [<] [>] buttons to select “PAD”, and press the [ENTER] button.
      -The PAD screen appears.

   3. Press the kick pedal for the first unit.
      -You can also select the pad to configure by holding down the [ENTER] button and pressing the [<] [>] buttons.
   4. Use the [<] [>] buttons to select “Type”, and use the [-] [+] buttons to switch to the connected kick pedal (“KT1” or “KT10”).
4. Press the [] (DRUM KIT) button to return to the DRUM KIT screen.



Using the KD series (sold separately) with a twin pedal

1. Set a twin pedal for the kick pad (KD series).
   -The stand pipe may get in the way, depending on the kick pad size. Set up the stand so that the twin pedal shaft does not touch the stand pipe.
   -See the "Pad Type List" in the "TD-02 Owner's Manual" for details on the pads that can select for the PAD Type of the TD-2.
2. Connect the KIK plug of the dedicated cable to the OUTPUT jack of the kick pad.
3. Select the connected kick pedal for the PAD Type.
   -Follow the instructions in step 2 to view the PAD screen and select the connected kick pedal.
