RE-202: Assigning functions to an external footswitch

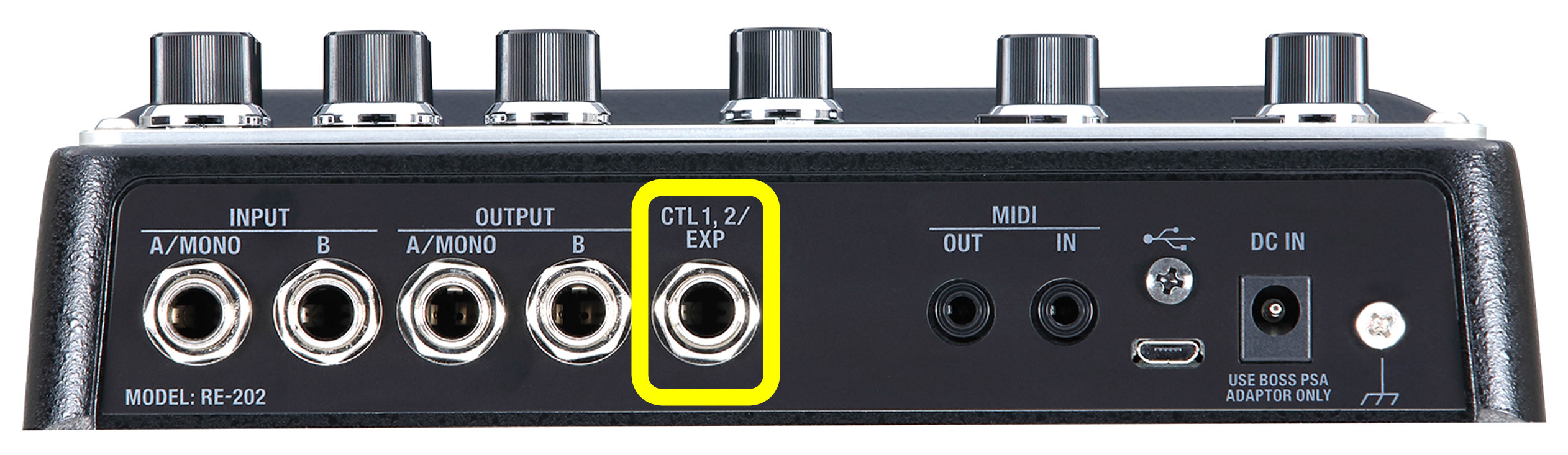

The RE-202 can support a single footswitch (such as the FS-5U, FS-6 or FS-7) via the CTL 1,2/EXP Jack.

You can control a selection of parameters with the touch of a button, freeing up the main footswitches on the RE-202.

Here's how

1. Press and hold down the [TAP] switch, and turn on the power.
2. Set the [MODE SELECTOR] knob to “6” if you wish to set the CTL 1 function, or to “7” if you wish to set the CTL 2 function.

3. Use the [MEMORY] button to select the function to set.

   MEMORY indicators	Function
   MANUAL	Select the next memory.
   1	Select the previous memory.
   2	Turn on/off effects.
   3	Press the footswitch at the tempo of the song you’re playing to specify a matching repeat rate.
   4	CTL 1: WARP is on while the switch is pressed. CTL 2: TWIST is on while the switch is pressed.

4. Press the [TAP] switch to exit the function settings.

*NOTE* Please ensure you use one of the recommended BOSS footswitches. Compatibility with third party manufactured footswitches is not guaranteed and may cause your RE-202 to malfunction.
