You can mix the game sound and voice chat of the PlayStation® 5 with the BRIDGE CAST and stream it without a computer.
Follow the steps below:
-

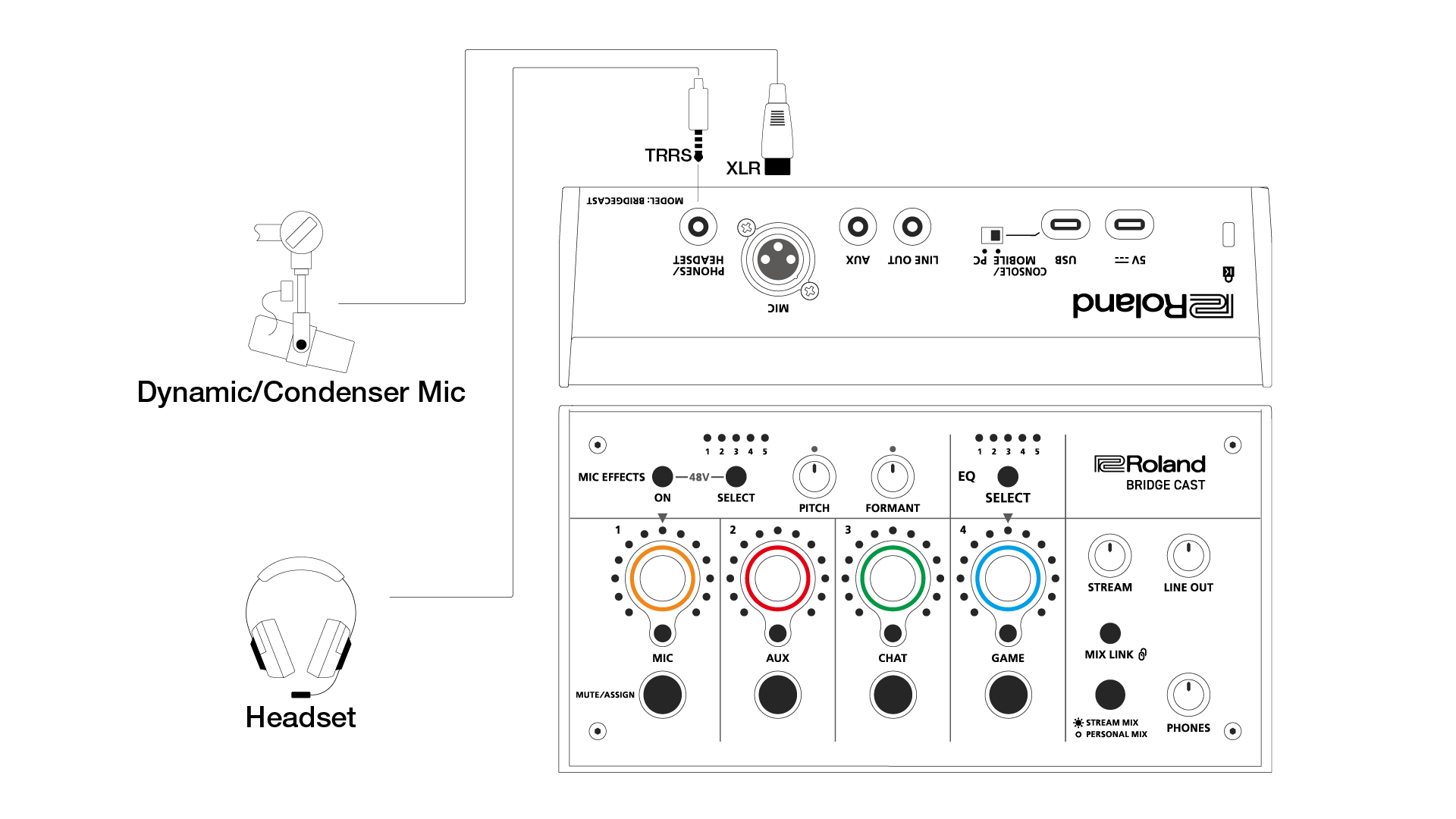

Connect a microphone or headset to the BRIDGE CAST.
*Use an XLR cable for connecting a microphone.
*Use a cable with 4-pole (TRRS) mini-phone plugs (3.5 mm) for connecting a headset.

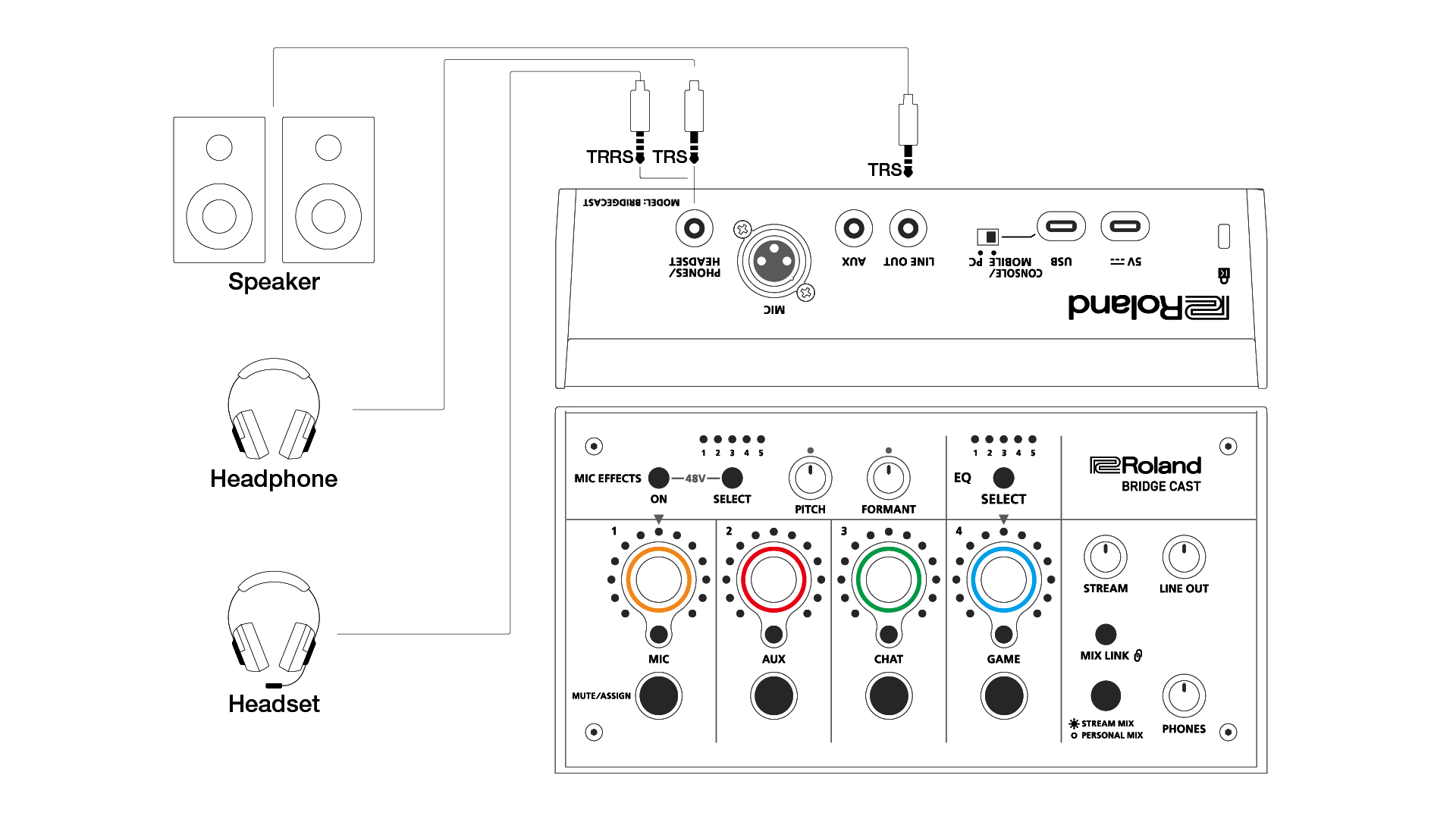

*See "Connecting to a Video Game Console" in the BRIDGE CAST Owner's Manual. - Connect your monitor speakers, headphones, or headset to the BRIDGE CAST.
- Set the USB connection setting switch to "CONSOLE MOBILE".
-
After booting up your PlayStation 5, use the included USB cable (Type-C to Type-C, or Type-C to Type-A) to connect the PlayStation 5 to the USB port of the BRIDGE CAST.
BRIDGE CAST automatically turns on, and the indicators on the operating panel light up.
- To use the voice chat functionality on the PlayStation 5, go to the home screen and select Settings > Sound, and then adjust the following settings:
- Microphone > Input Device: USB Headset (BRIDGE CAST)
- Audio Output > Output Device: USB Headset (BRIDGE CAST)
- Set up broadcast on PlayStation 5.
For details on how to stream using the broadcast function, see "How to stream gameplay with Broadcast on PS5 consoles" on the official PlayStation®5 website.
Operation during streaming
PlayStation 5 streams the input audio of CH 1 (MIC) on the BRIDGE CAST and the game sound of the PlayStation 5 only. For details on adjusting the volume on the BRIDGE CAST, see "Connecting to a Video Game Console" > "Adjusting the Volume" in the "BRIDGE CAST Owner's Manual".
In the default setting, when the USB connection setting switch is set to "CONSOLE/MOBILE", the CH[3] (CHAT) knob is assigned to USB audio. And the EQ [SELECT] button is applied to CH[3] (CHAT).
