TD-20: How to Perform a Factory Reset (Restore Default Settings)

Performing a factory reset will restore all TD-20 settings to their original factory defaults.

Note: All data and settings stored in the TD-20 are lost in carrying out this operation. So if necessary, save your
data to a memory card or an external MIDI device before executing the factory reset. See "Saving Data to a Memory Card" and "Saving Data to an external MIDI Device (Bulk Dump)" in the TD-20 Owner's Manual.

1. Press [SETUP] - [F5 (F RESET)].
   [SETUP] lights, and the “FACTORY RESET” screen appears.
2. Press [F5 (RESET)].
   The confirmation screen appears.
3. Press [F5 (EXECUTE)] to execute Factory Reset.

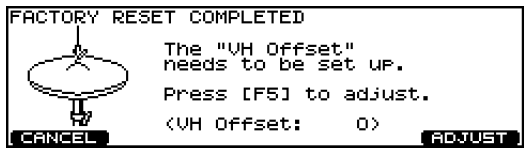

   When Factory Reset is finished, the following screen appears.

4. Press [F5 (ADJUST)].
   The “VH OFFSET ADJUSTMENT” screen appears.
5. Loosen the clutch of the top hi-hat and let it sit on the bottom hi-hat.
   Important: Do NOT touch the hi-hats or the pedal.
6. Press [F5 (EXECUTE)].
   The VH Offset parameter is set automatically.
   When finished, the “DRUM KIT” screen appears.
