When using a microphone that requires phantom power with the RC-505, you must turn on the Phantom Power switch. Here's how.
If you have the "RC-505mkII," please refer to RC-505mkII: Phantom Power Switch.
- Press the [SYSTEM] button.

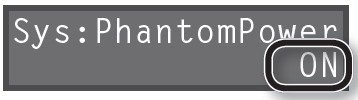

- Use the cursor [>] button to select "Sys :PhantomPower".
- Turn the [MEMORY/VALUE] knob to select “ON”.
- Press the [EXIT] button to return to the play screen.
WARNING: Precautions concerning use of phantom power supply
Always turn the phantom power off when connecting any device other than condenser microphones that require phantom power.
You risk causing damage if you mistakenly supply phantom power to dynamic microphones, audio playback devices, or other devices that don’t require such power. Be sure to check the specifications of any microphone you intend to use by referring to the manual that came with it. (This instrument’s phantom power: 48 V DC, 10 mA Max)
