Occasionally it's useful to be able to have only the guitar sound output from the MAIN OUTPUT jacks and only the synth sound output from the SUB OUTPUT jacks.
To Do This:
1. Press MENU.
2. Select SYSTEM.
3. Press SELECT.
4. Select OUTPUT.
5. Press SELECT.
6. Set SYSTEM “OUTPUT SELECT” to “LINE.”
7. Press SYNTH/FX.
8. Turn SELECT knob to choose: "THRU/RTN."
9. Press SELECT.
10. Use parameter knob [4] to increase the “DIRECT LEVEL.”
(This will adjust the level of dry sound of the guitar)
11. Press SYNTH/FX.

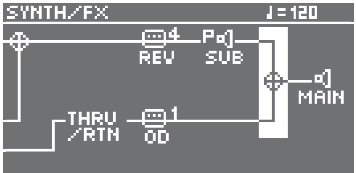

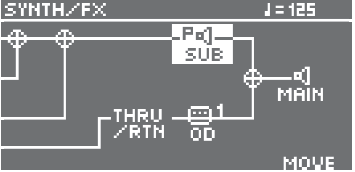

12. In the SYNTH/FX screen, place the “SUBOUT” icon toward the OSC side of the
OUTPUT MIXER.
13. Select "OUTPUT MIXER.
14. Press SELECT.
15. Use Parameter knob [1] to set the SYNTH LEVEL to "0."
