By factory default, the selection of SDI input or HDMI input for channel 3 is set to “AUTO” (automatic
detection of the connection). When devices are connected to both the SDI IN 3 connector and the HDMI IN 3 connector, SDI input takes precedence. When you want to input video via a specified connector you must change this setting. Here are the steps on how to assign the video source to input 3.
- Press and hold the [SETUP] button (for 2 seconds or longer) to display the SETUP menu.

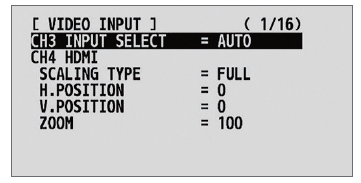

- Select “CH3 INPUT SELECT.
- Use the A/B fader to specify the video source to input on channel 3.
- The choice is between the following:
- AUTO: The connector where the connection is made is automatically detected and video is output. When devices are connected to both the SDI IN 3 connector and the HDMI IN 3 connector, SDI input takes precedence.
- SDI: Video is input only via the SDI IN 3 connector.
- HDMI: Video is input only via the HDMI IN 3 connector.
- Once you have assigned the video source press the [SETUP] or [AUDIO] button to quit the menu.
