When the OUTPUT MODE is set to "FX/DRY", the dry sound (with no effects applied) is output from the OUTPUT R connector. To output the effect sound from the OUTPUT R connector, set the MODE to either "MONO" or "STEREO".
- Press the [MENU] button.

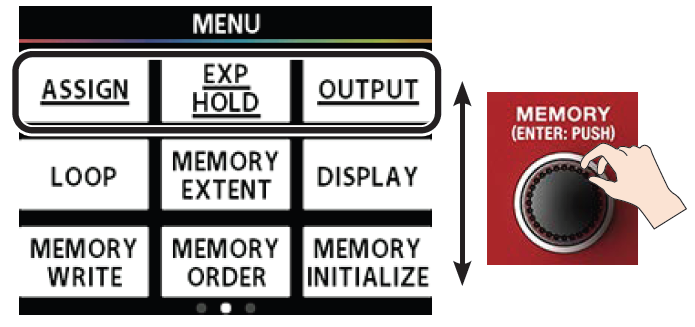

The MENU screen appears. Turn the [MEMORY] knob to select the “OUTPUT” row.
All items in the selected row are underlined.- Press the [ECHO] knob.
- Turn the [EFFECT] knob to select "MONO" or "STEREO" for MODE.
- MONO: Converts the stereo signal inside the VE-22 to mono, and outputs this to the OUTPUT L and R connectors.
- STEREO: Uses both OUTPUT L and R to output a stereo signal.
- Press the [EXIT] button several times to return to the play screen.
