This guide walks you through basic audio and video setup for BRIDGE CAST X. For more detailed setup information, including Dual PC setups, please reference the related guides available in the knowledgebase.
IMPORTANT NOTE
If you previously installed the control app for the original BRIDGE CAST (version 2.00 or earlier), use this guide to update it to version 3.00 or later before connecting BRIDGE CAST X to that computer.
The original BRIDGE CAST will continue to work with that computer, they both use the same control app. And you don’t need to uninstall anything to add BRIDGE CAST X to that computer.
Step 1
Go to the BRIDGE CAST X downloads page: https://www.roland.com/global/support/by_product/bridge_cast_x/updates_drivers/
- Download the “BRIDGE CAST App” for your OS.
- Download the “BRIDGE CAST X USB Driver” for your OS.
Reference image, current version numbers may be newer
Step 2

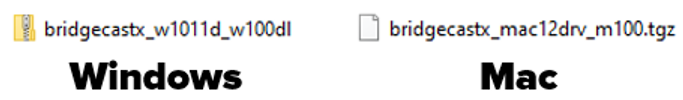

Unzip the driver:
Run the driver installer:
Reference image, current version numbers may be newer
Restart your computer if the installer asks you to.
Step 3
Unzip the app:
Reference image, current version numbers may be newer
Run the app installer:
Reference image, current version numbers may be newer
Step 4
To set up a microphone, connect it to the XLR MIC input. If the microphone needs phantom power, change the switch from OFF to 48 V.
To set up a headset with an attached microphone, connect it to PHONES/HEADSET.
Step 5
To set up video capture, connect an HDMI source to IN 1.
Connect HDMI THRU to your monitor.
On the top panel, check that VIDEO 1 is lit white.
If instead VIDEO 2 is lit, press the HDMI IN button once.
Press the USB OUT button once, so that it’s lit blue.
If you disconnect your source or it is not compatible, the USB OUT button will turn off after a few seconds.
Step 6
There are 2 USB cables in the box. Set aside the one labeled “Power” and use the other one.
Check that the switch above USB II on the back of BRIDGE CAST X is set to PC.
Connect the USB cable between USB II VIDEO/AUDIO and your computer.
Step 7
Open the BRIDGE CAST App. It should look like this:
Reference image, current version numbers may be newer

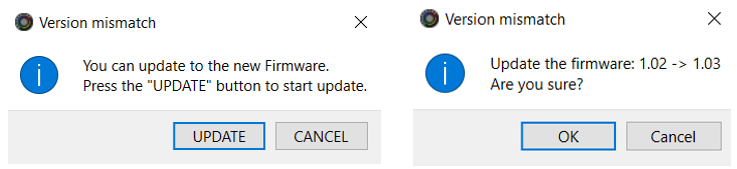

You may receive a pop-up asking you to update. Click UPDATE, followed by OK:
Reference image, current version numbers may be newer
The update should take 1-2 minutes and it may stay on 99% for some time.
When it reaches 100%, unplug the USB cable, wait 3 seconds, and plug it back in:
You should see “BRIDGE CAST X” in the top left corner of the control app. That means it is connected. If not, close the app and open it again.
Note: Reference image, current version numbers may be newer
