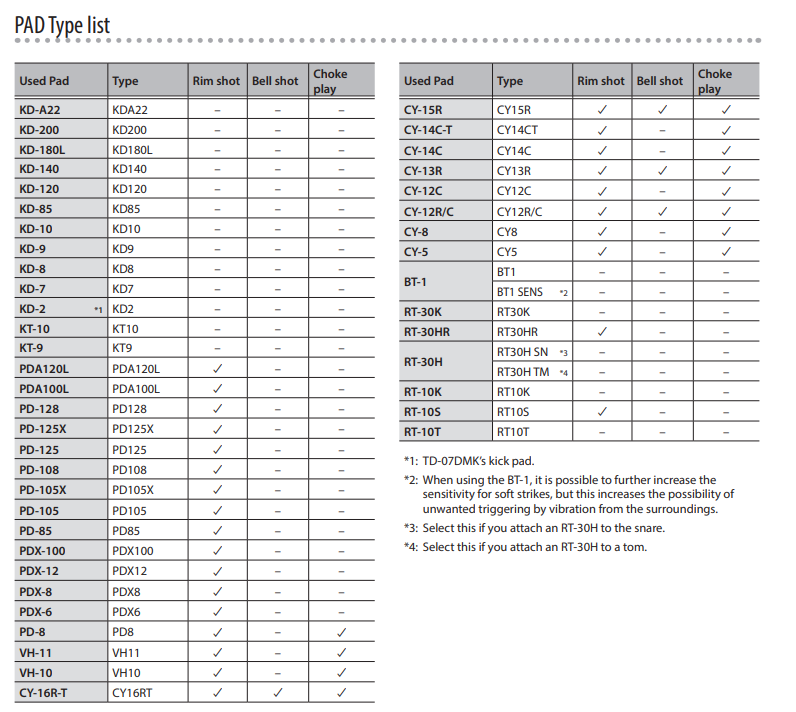

For optimum trigger results, it's best to match the Trigger Type with the type of pad that's connected to an input. Doing so "tells" the TD-07 module what type of pad is connected and automatically optimizes the sensitivity settings for that pad. From the factory, all of the Pad Types have already been set accordingly, however if you have added an extra pad to the kit, it's best to set the Pad Type for it. Here's how:
- Press the SETUP
button.
- Use the cursor buttons to select “PAD,” and then press the ENTER button.
The PAD screen appears. - Strike the pad that you want to set.
- Turn the main dial to choose the Pad Type.
- Repeat Steps 3 & 4 for any remaining pads if desired.
- Press the Drum Kit
button when you're finished. The new settings are saved automatically.
