Here’s how all the MS-3’s patches can be saved (backed up) to the MS-3 Editor/Librarian.
All patches are saved as a Liveset.
To back up your MS-3 you will need
- MS-3 updated with the latest System Program
- MS-3 Editor/Librarian software editor (Windows/Mac)
- USB driver, compatible for your specific computer OS and Version
- USB 2.0 A to B type printer data cable
* When possible, connect directly to your computer's USB 2.0 A port specifically. You may use a USB-C Hub adaptor in order to provide a USB 2.0 A compatible port if not available.
Please make sure to install the system program, editor, and USB drivers in advance. These can be downloaded from the following link: https://www.boss.info/global/products/ms-3/downloads/ For details on how to install, please refer to "Using MS-3 Editor/Librarian".
- Launch the MS-3 Editor/Librarian.

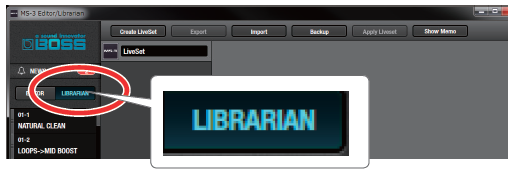

- In EDITOR screen, click the [LIBRARIAN] button.

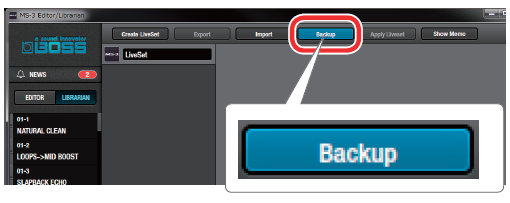

- At the top of the EDITOR screen, click the [BACKUP] button.
The 'Backup' dialog box appears. - Click the [OK] button.
The message 'Completed.' appears. - Click the [OK] button.

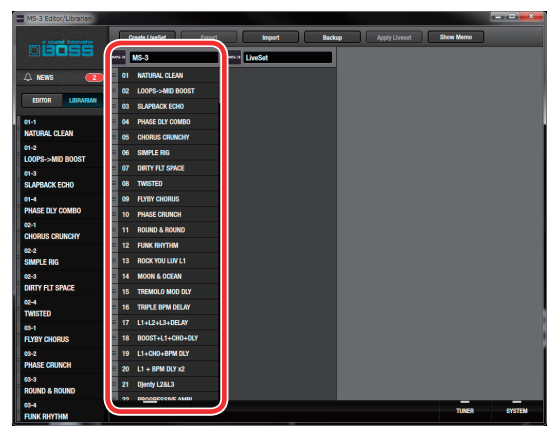

The user patches are saved as a Liveset in the EDITOR's library.
