When you connect the PD-14DSX to the V71 or TD-50X (version 1.20 or later), the following functional differences apply.
Note: The TD-50X supports the PD-14DSX from System Program Version 1.20.
| Function | V71 | TD-50X (Version 1.20 or Later) |
||
|---|---|---|---|---|
| Strainer Indicator Color | The color of the sound module kit is used for the strainer indicator color. |
✔ | ✔ | |
| Positional Sensing | Center versus edge of pad face |
✔ | ✔ | |
| Position struck on pad face |
✔ | NA | ||

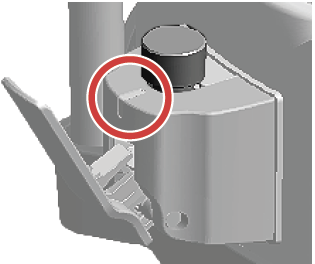

| Strainer Lever | Strainer lever Function | STRAINER ON/OFF | ✔ (Configurable per kit) | ✔ (*1) (Same setting for all kits) |
| FX CONTROL | NA | |||
| FUNCTION OFF | ✔ (Same setting for all kits) | |||
| Strainer Mode | NA (Operates the same way as when Strainer Mode is set to "BEHAVIOR" on the V71.) |
|||
| Strainer Throw Sound | NA | |||
| Strainer Throw Volume | NA | |||

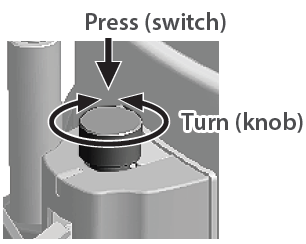

| Strainer Switch | ✔ (Configurable per kit) | ✔ (*2) (Same setting for all kits) |
||
| Strainer Knob | ✔ (Configurable per kit) | ✔ (*3) (Same setting for all kits) |
||
✔: Supported, NA: Not supported
Notes:
- (*1) MIDI messages are not output.
- (*2) OFF, DISPLAY STRAINER KNOB FUNC, SONG TOP, SONG PLAY/STOP, CLICK PLAY/STOP, TAP TEMPO, SNAPSHOT SAVE, ALL SOUND OFF.
- (*3) OFF, SONG#, CLICK TEMPO, STRAINER ADJUST, SNARE TUNING, SNARE MUFFLING, LCD BRIGHTNESS.
