GX-100: How to record a performance on an iOS device

With GX-100 System Program 2.0 and later, the BOSS GX-100 can be connected to an iOS device via USB to record performances directly into a mobile app. To enable this, set the USB DRIVER mode to "GENERIC".

1. Connect the USB COMPUTER port (USB B type) on the GX-100 to the iOS device.
   Note: Use a USB cable that supports data transfer.

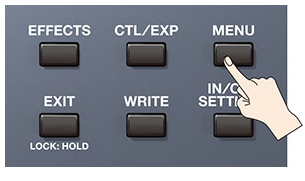

2. Press the [MENU] button.

3. Touch <USB> on the screen.
4. Touch <USB DRIVER>.
5. Turn knob [3] to select "GENERIC".
6. Press the [EXIT] button twice to return to the previous screen.
7. Turn the GX-100 off and on again to apply the new setting.

NOTE:

• When connecting to a computer with the dedicated driver installed, set USB DRIVER to "VENDOR".
• Not all mobile devices or apps are guaranteed to support audio communication.
