Yes. When the KATANA-100 GEN 3 is connected to BOSS TONE STUDIO (BTS) for KATANA GEN 3, you can move certain FX blocks to pre-designated positions in the chain.
- BTS can be downloaded here: https://www.boss.info/global/support/by_product/katana-50_gen_3/updates_drivers/
- Make sure the latest System Program is installed on your KATANA GEN 3, and that the correct drivers are installed on your Windows or macOS computer. These are available from the same link above.

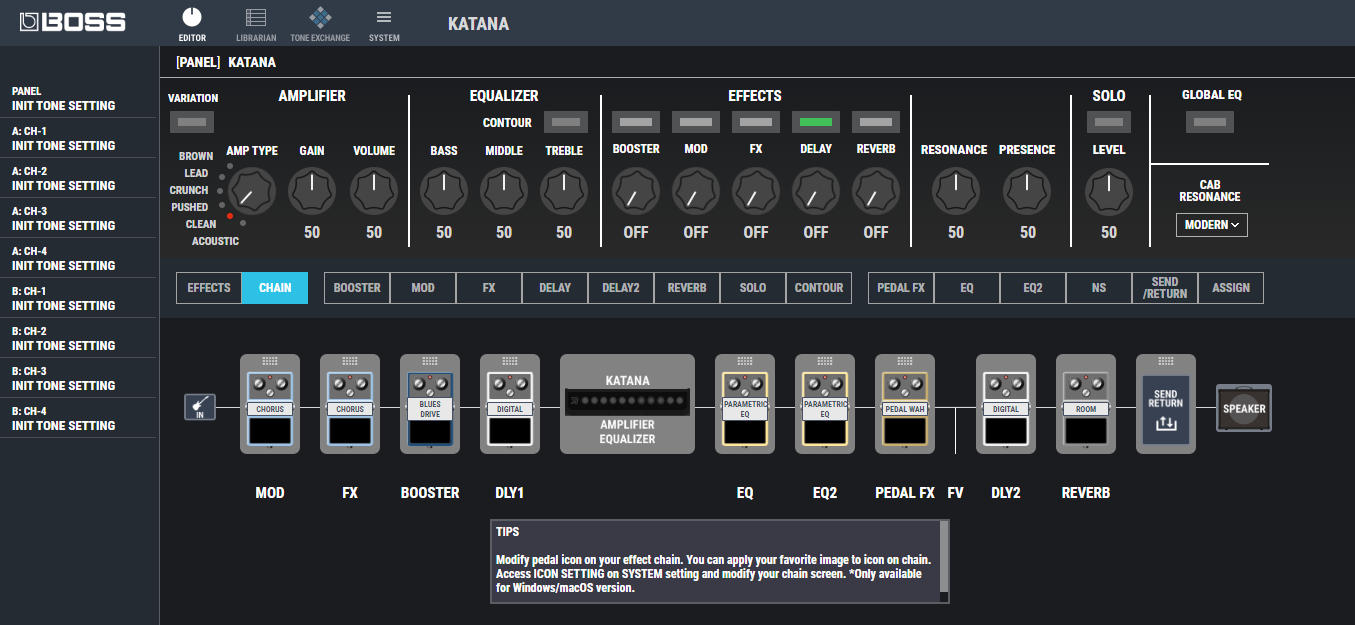

- Once BTS is installed and your KATANA GEN 3 is connected to your computer, click the "CHAIN" tab in the main BTS window.
Each FX block can be dragged to one or more pre-designated positions in the chain.
Note that DLY2 and REVERB cannot be moved. - Move your cursor to the dotted area above the FX block you want to move, then click and drag it to a position marked with a blue dot. When the dot turns white, drop the FX block.

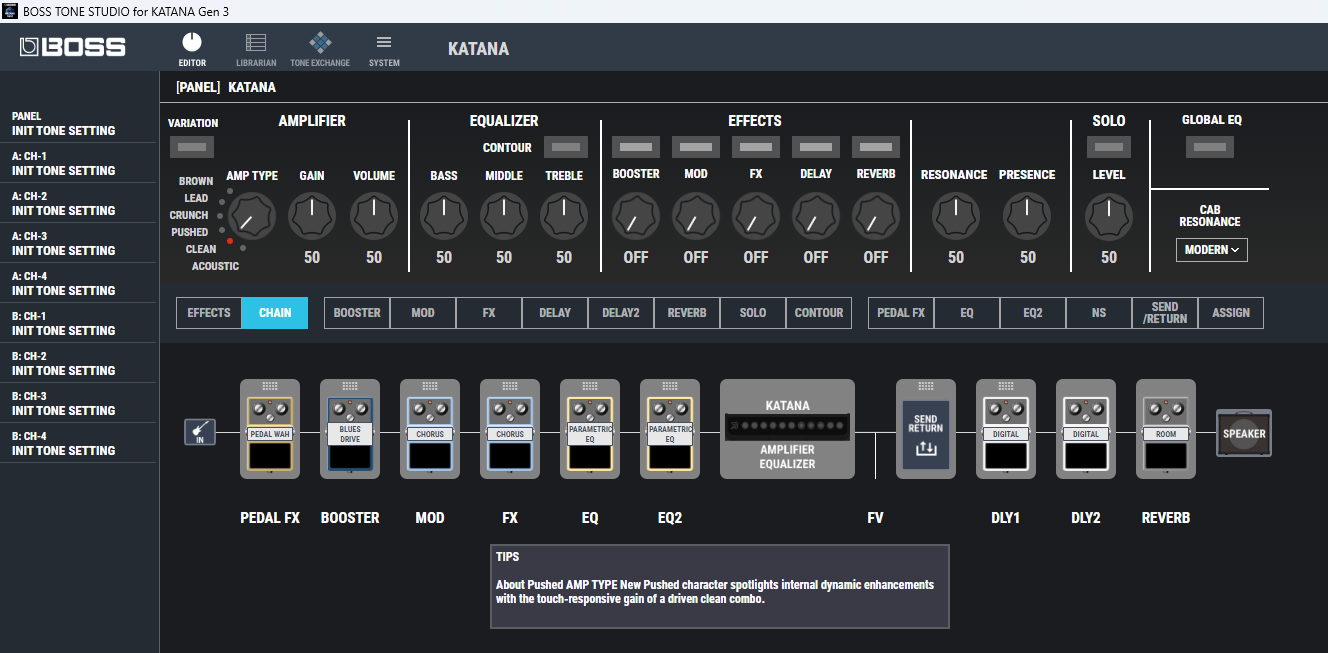

Here's an example from the same chain, but with the FX blocks reordered.This allows for more flexibility when creating custom tone settings for each channel.
