GX-10: How to Change the Function of Simultaneously Pressing the Footswitches on the Unit

On the GX-10, you can assign a specific function to pressing the [▼] + [▲] or [▼] + [CTL1] footswitches at the same time.
Note: This setting is available only in UP/DOWN mode and MANUAL mode.

To disable this function or assign a different one, follow the steps below.

1. Press the [MENU] button.

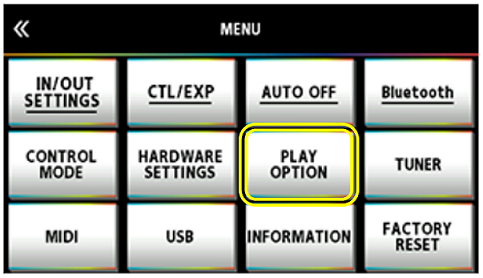

2. Touch the PLAY OPTION icon.


3. Use the knob at the bottom of the screen to adjust the settings for "▼ & ▲" and "▼ & CTL1".

   Parameter	Available Settings	Description
   ▼ & ▲	OFF, TUNER, DOWN, UP	Assigns a function to the simultaneous press of the specified footswitches on the unit. Available only when the control mode is set to UP/DOWN or MANUAL.
   ▼ & CTL1	OFF, MANUAL, DOWN, UP

   Note: "TUNER" can only be assigned to "▼ & ▲", and "MANUAL" can only be assigned to "▼ & CTL1".
