On the V-STAGE 76 and V-STAGE 88, each sound generator part is automatically routed via USB audio to fixed stereo track inputs in your DAW (Digital Audio Workstation):
- Stereo Input 1/2 = All Parts
- Stereo Input 3/4 = Sub Outs
- Stereo Input 5/6 = Organ
- Stereo Input 7/8 = A. Piano
- Stereo Input 9/10 = E. Piano
- Stereo Input 11/12 = Synth A
- Stereo Input 13/14 = Synth B
- Stereo Input 15/16 = Line Inputs
- Stereo Input 17/18 = Mic
This functionality requires the V-STAGE Driver to be installed on your computer.

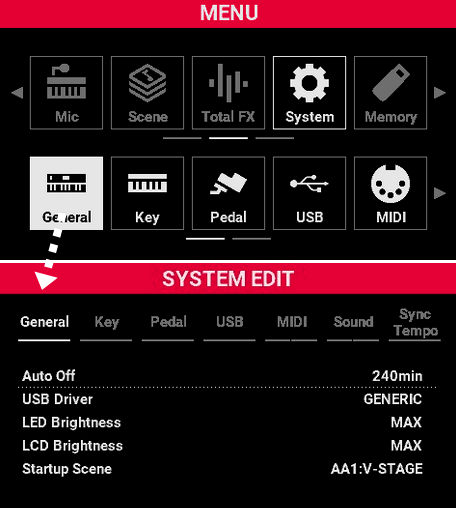

- Set the USB driver mode to "VENDOR": [MENU] > System > General > USB Driver.
- Save the change (System Write), then turn the power off and back on.
- Install the V-STAGE Driver on your computer.
