Yes. On the V-STAGE 76/88, the audio signal from a microphone connected to the "MIC INPUT" jack and audio player/external instrument connected to the "LINE INPUT" jacks can be routed to a computer recording software (DAW) for recording.
In order for the audio from both the "MIC INPUT" and "LINE INPUT" jacks to be routed to your computer's recording software, please do the following:
- Set the USB driver mode to "VENDOR".

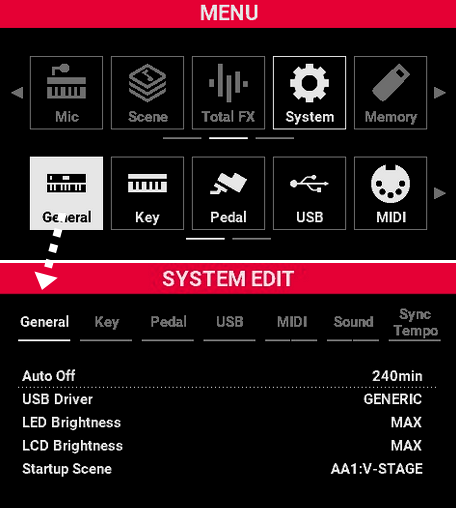

[MENU] > System > General > USB Driver - Save the changes (System Write), then turn the power back on.
- Install the V-STAGE Driver on your computer.
- In your recording software:
- Set the track input to stereo 15/16 (or mono 15, 16) to record the audio from the device connected to the V-STAGE's "LINE INPUT".
- Set the track input to stereo 17/18 (or mono 17, 18) to record the audio from the microphone connected to the V-STAGE's "MIC INPUT".
To adjust the audio signal from the microphone, ensure that the MIC IN [LEVEL] knob on the panel is raised and the [ON/OFF] button set to "ON". All MIC INPUT parameters can be adjusted in the Mic menu.
The "Line Sw" input (On/Off) and level of the LINE INPUT audio source can also be accessed and adjusted in the MIC MENU.
