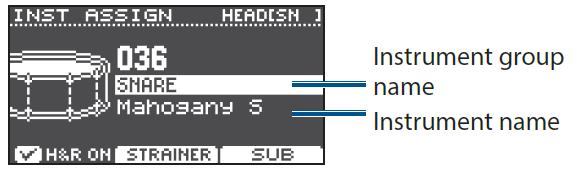

Each of the TD-17's Kits can be customized to your liking. Assigning desired instruments (sounds) to each of the pads is a good place to start. Here's how:
- Choose a Kit to edit. (Note, even the factory kits 1-50 can be edited if desired).
- Press the ASSIGN button.
- Press the function 1 button so that the H&R box is not checked.
- Hit the pad - or portion of the pad (head, rim, bell) - that you want to assign an instrument to.
- Turn the dial to select the desired instrument.
- Repeat Steps 4 and 5 for any other pads.
- Press EXIT when you're finished. The new settings are saved in Kit automatically.
