FANTOM 6, FANTOM 7, FANTOM 8 System Version 2.10: Selecting Model Expansion Tones

System Update version 2.10 for the FANTOM adds the ability to load Model Expansions. The following Model Expansions are currently available:

• Jupiter-8
• Juno-106
• JX-8P
• SH-101

Once you have installed the version 2.10 update and the loaded one or more of the Model Expansions, you can use this procedure to select and use the new Expansions:

1. Switch to the ZONE VIEW screen.

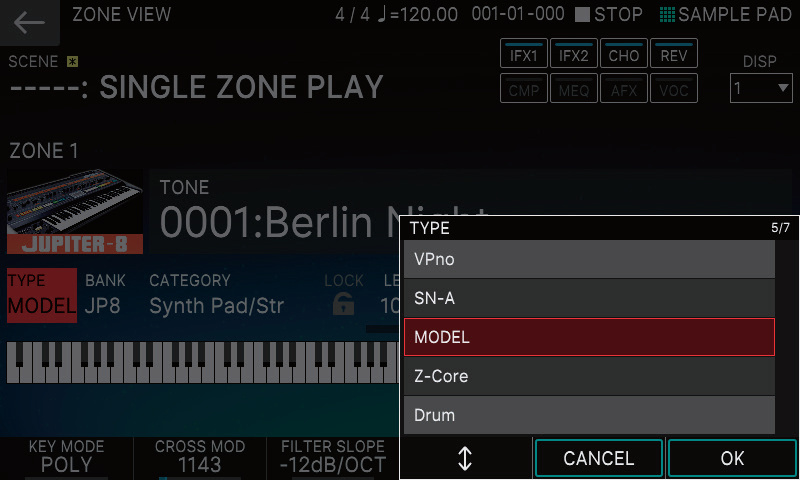

2. Move the cursor to TYPE, and select “MODEL.”

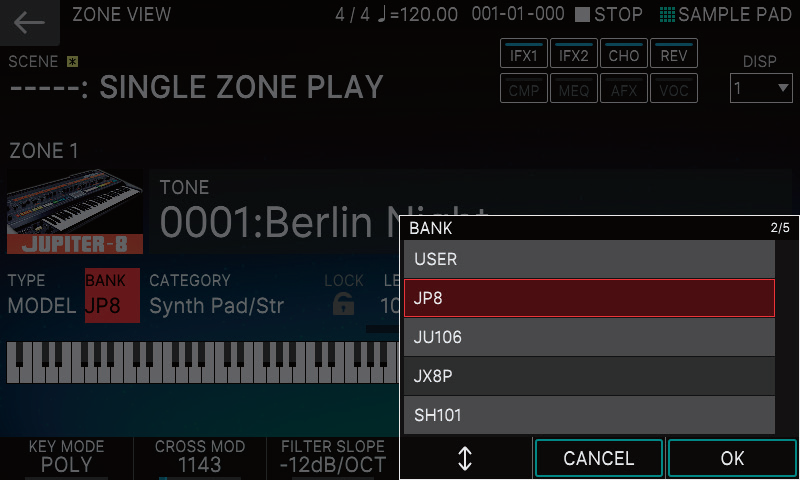

3. Move the cursor to BANK, and select a model bank.
4. Move the cursor to the tone name (number), and use the [VALUE] dial or the [INC][DEC] buttons to select a tone.
