When the output assignment of the MIX IN is set to "DIRECT OUT 1-8" or "MASTER DIRECT," the MIX IN audio signal will also be output via the TD-50X's USB port.
- Note: In order to transmit and receive audio via the TD-50X's USB port, the TD-50X USB driver must be installed in your computer, and the TD-50X's USB Driver Mode must be set to "VENDOR". See "TD-50, TD-50X: USB Audio Menu".
Here are the steps to set the MIX IN:
- Press the [SETUP] button.
- Press the PAGE [UP] button to display page 1 (SETUP MENU 1).
- Press the [F1] (OUTPUT] button.

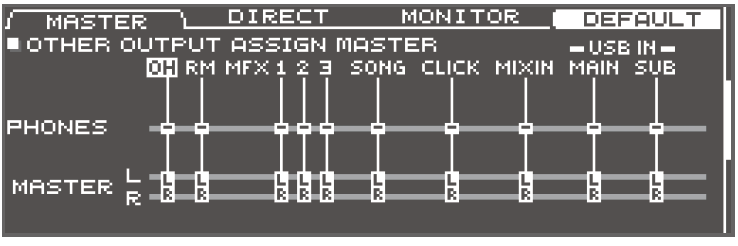

- Press the PAGE [UP] or [DOWN] buttons to display page 2 (OTHER OUTPUT ASSIGN MASTER).
- Press the [F2] (DIRECT) button.
- Use the cursor buttons [<] [>] to highlight "MIX IN," and then use the cursor buttons [∧] [∨], the [-] [+] buttons, or the dial to select the desired output destination. (DIRECT OUT 1-8, MASTER DIRECT).
When you select "MASTER to "DIRECT"
- Press the [F1] (MASTER) button.

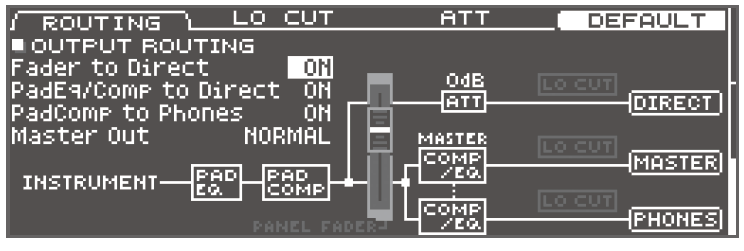

- Press the PAGE [DOWN] button to display page 3 (OUTPUT ROUTING).
- Use the cursor [▼] button to highlight "Master Out," then use the [+] button or main dial to select "DIRECT"
- Press the [KIT] .button to return to the DRUM KIT screen.
- The new settings are saved automatically.
