Aerophone Pro AE-30: How do I change the MIDI Channel?

The Aerophone Pro AE-30 supports transmit channel changes only. The receive channel is fixed.

Changing the TX channel

The Aerophone Pro Editor app (iOS/Android) is required to change the TX channel.

1. Set the [MIDI CONTROL] switch to "ON."
2. Connect the unit to the Aerophone Pro Editor app via Bluetooth.
   For connection details, see "Aerophone Pro Editor Owner's Manual".
3. Tap [EDITOR] at the bottom of the app screen.

4. Tap [MIDI OUT].

5. Tap ">" of CONTROL.

6. Tap the value of the TX Channel, and change it to the desired channel. (Range: 1-16)
7. Tap [WRITE].

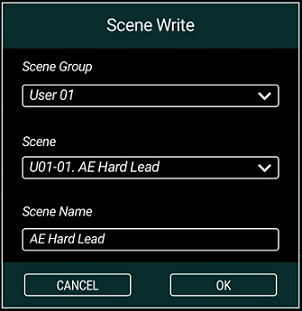

   The Scene Write screen appears.

8. Set "Scene Group," "Scene," and "Scene Name," then tap [OK].

   The changes are transmitted to the unit.

Receive channel (fixed)

Tones except for drum kit tone

• Part 1: 1
• Part 2: 2
• Part 3: 3
• Part 4: 4

Drum kit tone
Note: If a drum kit tone is assigned to part 1, parts 2–4 are not available.

• Part 1: 5
