The WT-10 supports the connection of V-Hi-Hats and hi-hat controllers. (VH-14D digital Hi-hat not supported).

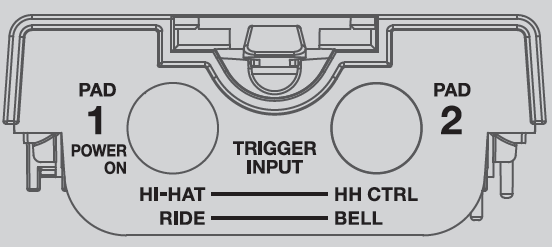

Connect them as shown below, and configure the Trigger Type using the DWe Control app.
| PAD1 jack | PAD2 jack | Input Configuration | |
|---|---|---|---|
| VH-10 | HI-HAT plug | HH CONTROL plug |
PAD1: VH-10 PAD2: (HH CTRL) |
| VH-11 | HI-HAT plug | HH CONTROL plug |
PAD1: VH-11 PAD2: (HH CTRL) |
| FD-8, FD-9 | (Connect the pad used as a hi-hat) | Control Out Jack |
PAD1: Pad used as a hi-hat PAD2: (HH CTRL) |

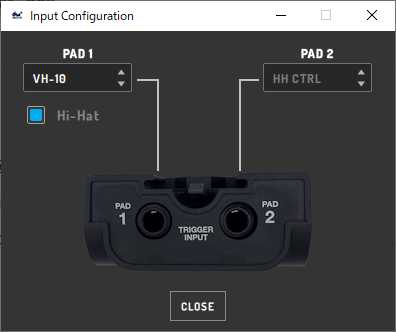

Example:
