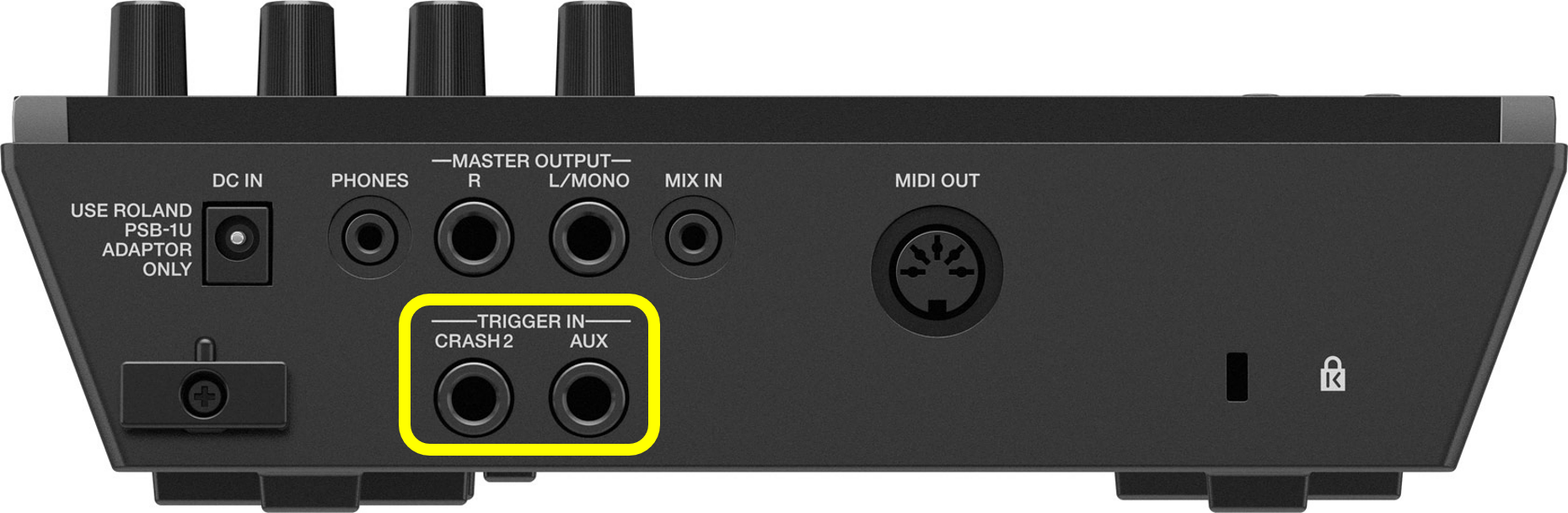

You can connect optional pads to the CRASH 2 and/or AUX TRIGGER IN jacks located on the rear panel of the TD-17 if they are currently unused. Please refer to “Pad Type list” in the TD-17 Data List for the supported pads.
The following example shows how to connect a Roland PDX-8 dual-trigger pad to the TRIGGER IN (AUX) jack as an extra tom pad.
- Using a Roland V-Drums dual-trigger cable (i.e. Roland PCS-5-TRA V-Drums Trigger Cable), connect the PDX-8 to the TRIGGER IN (AUX) jack on the back panel of the TD-17.
Note: Roland pads normally include a V-Drums cable. - Press the [SETUP] button.
The SETUP MENU screen appears. - Use the dial to select "Pad Settings," and press the [ENTER] button. The PAD SETTINGS screen appears.
The PAD SETTINGS screen appears. - Press the [F1] (TYPE) button.
- Strike the AUX pad to select it.
- Use the dial to select "PDX8" as the Pad Type.
- Press the [DRUM KIT] button.
The new setting is saved automatically. - Strike the pad to check the sound.
Note: To assign a different instrument to the pad, refer to "Customizing a Kit" in the TD-17 Owner's Manual.
