Use one of the methods below to connect the CUBE Street II to your mixer.
- Connect to the MIC/INSTRUMENT jack (monaural):
Switch the SELECT switch of the MIC/INSTRUMENT channel to “INST.” - Connect to the i-CUBE LINK/AUX IN jack (stereo):
The i-CUBE LINK/AUX IN is a stereo miniature phone type jack. Use a cable or adaptor plug appropriate for the output jack of your mixer.
NOTE: The nominal input level of the MIC/INSTRUMENT jack and the i-CUBE LINK/AUX IN jack is -20 dBu. Use caution not to raise the mixer output level too high.

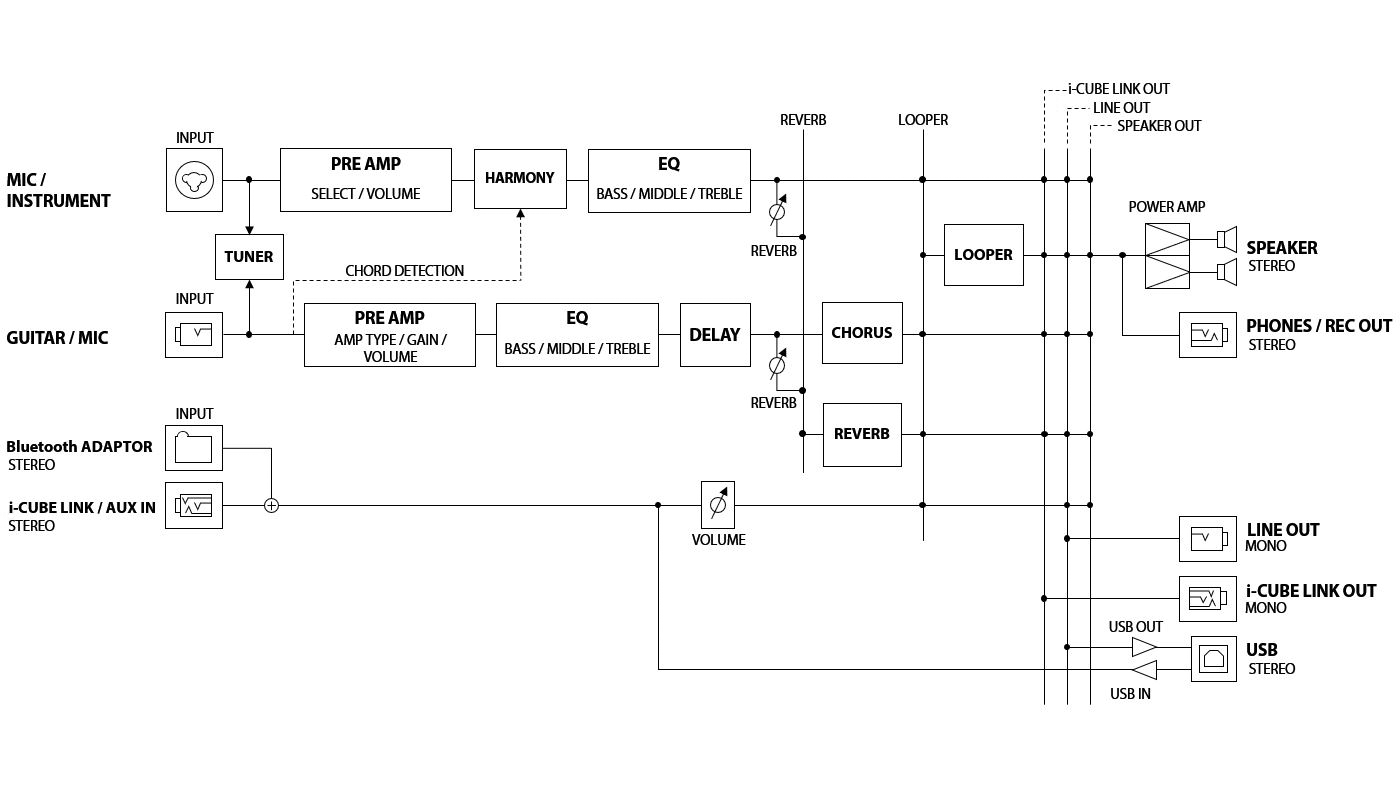

The signal paths for the MIC/INSTRUMENT jack and the i-CUBE LINK/AUX IN jack differ. Please refer to the block diagram below for details.
