Yes, you can connect two pads or drum triggers to a single trigger input by using a Stereo Insert cable (e.g. Roland PCS-31L, or RCC-TR28 series cables, sold separately).

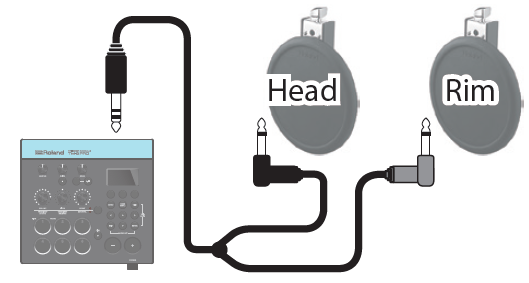

Connect the cable as shown in the diagram below, then follow these Steps to configure the settings:
- Press the [TRIG] button.
- Use the cursor buttons to select “BANK,” and then press the [ENTER] button.
The TRIGGER BANK screen appears. - Strike the pad or drum trigger connected to the trigger input you want to set up.
- Press the [-] or [+] button to set the INPUT TYPE to "PAD × 2."
- Press the [EXIT] button several times to return to the KIT screen. The new setting is saved automatically.
- In the INST assign menu, select the desired sounds that you want to trigger.
