The VH-14D works with TD-27 System Program version 1.11 or later. If you use the VH-14D with a TD-27 that has System Program version 1.11 or later, please set it up by following the steps below.
If your TD-27 is not at 1.11, here is a link to the download: https://www.roland.com/global/support/by_product/td-27/updates_drivers/
Note: Update instructions are included on a pdf within the download.
After updating and connecting the VH-14D, be sure to calibrate it within the TD-27:
- Turn on the TD-27's power.
- Press the SYSTEM button.
- Cursor [<] or [>] to highlight "TRIGGER," and then press ENTER.
- Cursor [<] or [>] to highlight "HI-HAT," and then press ENTER.
- Press the function 5 [F5] button (OFFSET).

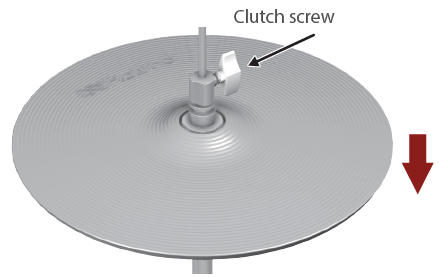

- Loosen the clutch, and then let the top pad drop down and rest on the lower pad.
- Press [F5] (EXECUTE).
- The calibration process takes approximately 3 seconds. - Press the Drum Kit button when the calibration is finished.

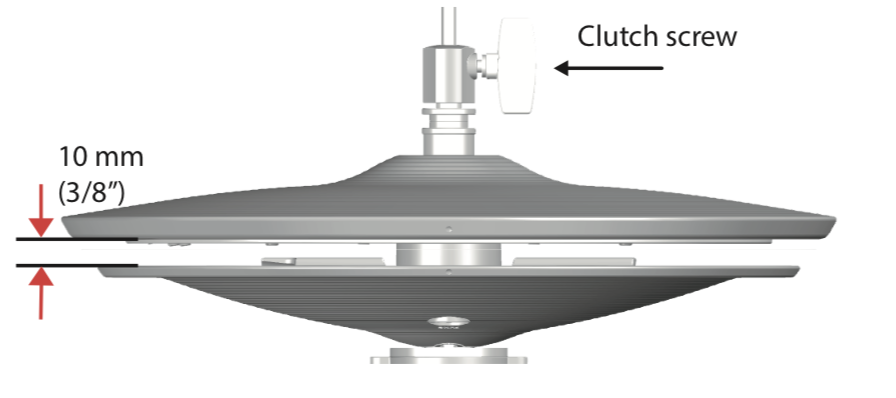

- Raise the top pad and tighten the clutch so there is proper space between the top and bottom pads.
See the VH-14D Owner's Manual for details.

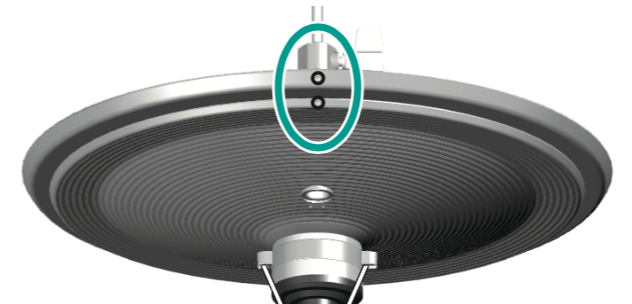

Also confirm that the top and bottom pads are positioned correctly on the Hihat stand. While playing, the small round marks (dots) on the edge of each pad should be lined up.
