The audio signal path of the DUAL CUBE LX changes depending on the USB driver and input/output settings. Configure these settings to match your use case, as shown below:
| USB driver | Computer | iOS device |
|---|---|---|
| Dedicated USB driver | On Windows, when “PRIMARY” (or “INPUT 1/2” in macOS) is selected for the input, the signal with effects applied is output via USB. |
Audio cannot be sent or received. |
| Standard OS USB driver | On Windows, when “SECONDARY” (or “INPUT 3/4” in macOS) is selected for the input, the signal without effects is output via USB. |
The sound with effects applied is output via USB. |
Note that you can also adjust the levels for the USB channels using the dedicated Dual Cube LX Editor.
Under SYSTEM SETTINGS, you will find USB SETTING which has the following parameters:
| Position | Parameter | Explanation |
|---|---|---|
| Primary | MIX LEVEL | Adjusts the level of input just before the signal from the computer reaches MASTER. |
| Primary | EFFECT OUT LEVEL | Adjusts the level of audio output to the computer, just before the signal from the computer reaches MASTER. |
| Secondary | TO EFFECT LEVEL | Adjusts the level of input just before the signal from the computer reaches PRE AMP. |
| Secondary | DRY OUT LEVEL | Adjusts the level of audio output to the computer, just before the signal from the computer reaches PRE AMP. |

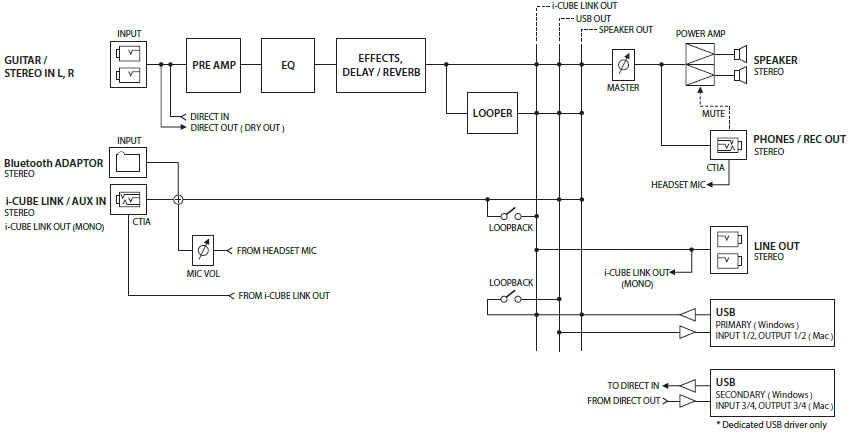

Block Diagram
