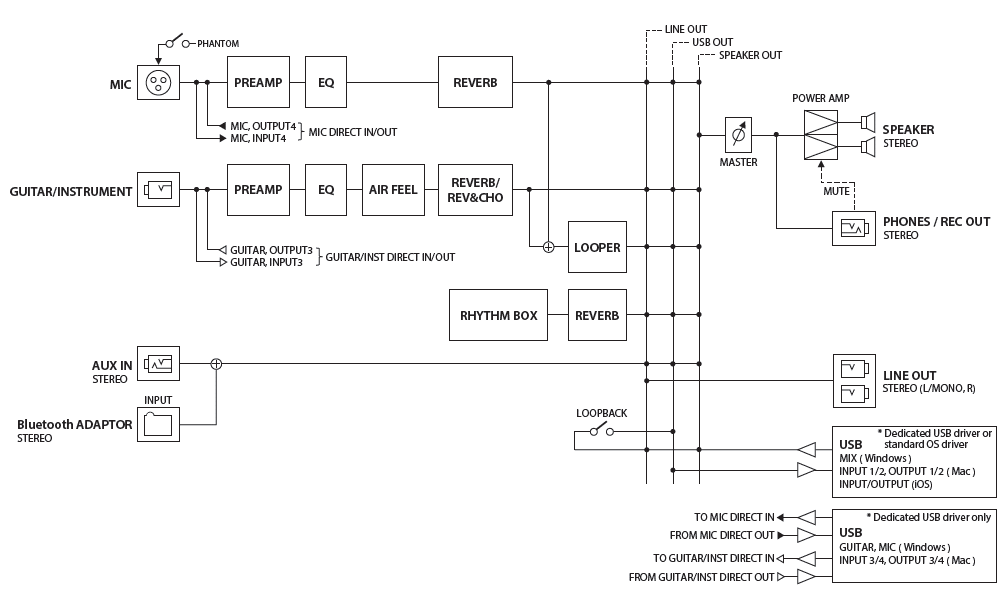

The AC-22LX audio signal path changes depending on the USB driver and input/output settings. Configure these settings to match your use case.
USB driver | Computer | iOS device |
|---|---|---|
| Dedicated USB driver | On Windows, selecting "MIX" (or "INPUT 1/2" on macOS) outputs the signal with effects applied via USB. Selecting "GUITAR-MIC" (or "INPUT 3/4" on macOS) outputs the GUITAR/INSTRUMENT and MIC signals without effects applied on separate channels via USB. | Audio cannot be sent or received. |
| Standard OS USB driver | On Windows, selecting "Digital Audio Interface" (or "INPUT 1/2" on macOS) outputs the stereo signal with effects applied via USB. | The stereo signal with effects applied is output via USB. |
