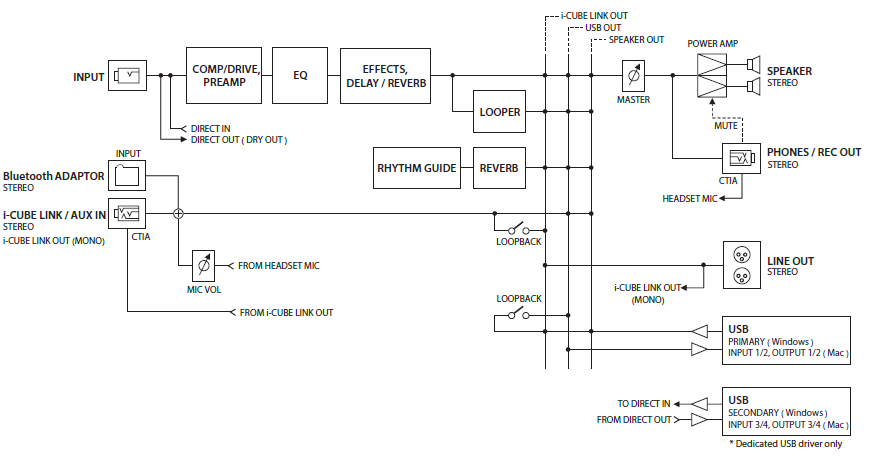

The audio signal path of the DUAL CUBE BASS LX changes depending on the USB driver and input/output settings. The following table shows the behavior for each driver setting.
| USB driver | Computer | iOS device |
|---|---|---|
| Dedicated USB driver | On Windows, when "PRIMARY" (or "INPUT 1/2" on macOS) is selected for input, the signal with effects applied is output via USB. | Audio cannot be sent or received. |
| Standard OS USB driver | On Windows, when "SECONDARY" (or "INPUT 3/4" on macOS) is selected for input, the signal without effects is output via USB. | The sound with effects applied is output via USB. |
