When you are outputting audio together with video from the HDMI outputs 1/2, you can use the steps below to adjust the output level:
1. Display the Audio menu.
Press the [MENU] button to display the menu. Use the [CURSOR] buttons to select [Audio], then press the [ENTER] button to display the Audio menu.

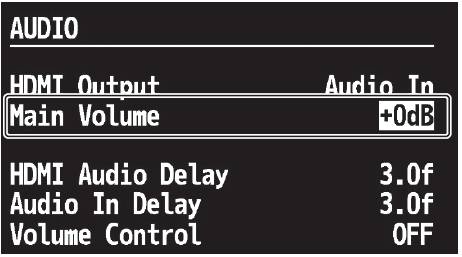

2. Select Main Volume.
Use the [CURSOR] buttons to select [Main Volume].
3. Adjust the output level.
Turn the [VALUE] dial to adjust the output level. Use the speakers or level meters on the peripheral equipment to adjust output level.
* The AUDIO indicator on the top panel indicates the output level.
4. Exit the menu.
Press the [EXIT] button several times to quit the menu.
Turn on the [Volume Control] to enable the [Main Volume] control using the [VALUE] dial. However, it is not possible to control while menu is displayed. Exit the menu to control using the [VALUE] dial.
