The RP107 allows you to select tones from the panel or from an external MIDI application such as a DAW. When you send MIDI messages from a DAW to specify a tone, the tone heard from the keyboard depends on the SMF Play Mode setting.
To play the keyboard with the tone specified from the DAW, perform both of the following operations.
-
Send Bank Select (CC00, CC32) and Program Change messages from the DAW via MIDI Channel 4
Note: For specific Bank Select and Program Change values, refer to "Tone List" in the RP701 / F701 / RP107 / F107 MIDI Implementation. -
Set the SMF Play Mode to "Internal"

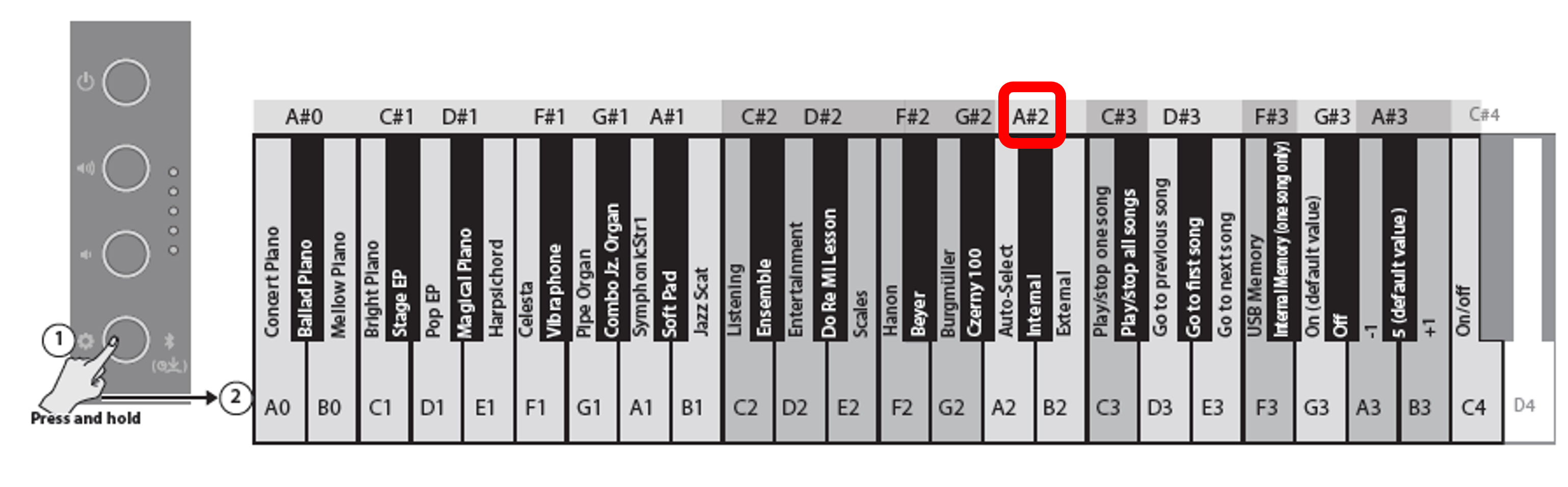

Hold down the [] button and press the A#2 key.
Note: For details, refer to "Other Function" in the RP107 Owner's Manual.
