JUNO-D6, JUNO-D7, JUNO-D8: How to Save Split and Dual Settings

On the JUNO-D series, Split and Dual (Layer) settings are saved as a Scene. If you want to register Split or Dual settings to FAVORITE, or recall them again even after turning the power off and on, be sure to save them as a Scene.

Note:
The SPLIT function divides the keyboard into left and right parts for performance.
If you want to assign different octave or semitone pitch settings to each part, this is done by adjusting the pitch settings for each part individually, which is different from the SPLIT button operation.
For details, see the following article: How to adjust octave or semitone pitch for each part in split mode

Below are tutorial videos that show you how to create and save these settings:

Roland JUNO-D - How to create a SPLIT

Roland JUNO-D - How to create a DUAL (Layer)

📺 More Tutorials Available

In addition to the videos above, you can find a playlist of JUNO-D tutorials that covers many other functions:
👉 Roland JUNO-D Tutorial Playlist

Refer to the videos above, or use the following steps to complete the operation.

Saving a Scene

1. Press the [WRITE] button.

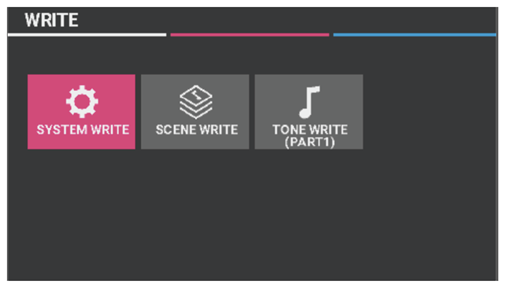

   The WRITE Menu screen appears.


2. Move the cursor to “SCENE WRITE” and press the [ENTER] button.
   A name input screen appears.

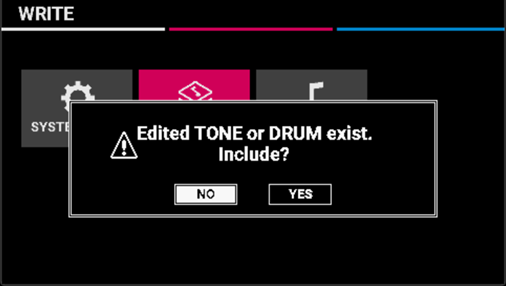

   Note: When an asterisk is shown for the scene or the tone/drum kit, the following screen appears. In this case, select “YES” to save the tone/drum kit first, and then save the scene. Saving the scene first causes the tone/drum kit data you edited to be lost.


3. To rename the scene, enter characters as shown in the instructions at the bottom of the screen.
4. After naming, press the [ENTER] button.
5. Use the value dial to choose a save destination, then press [ENTER].

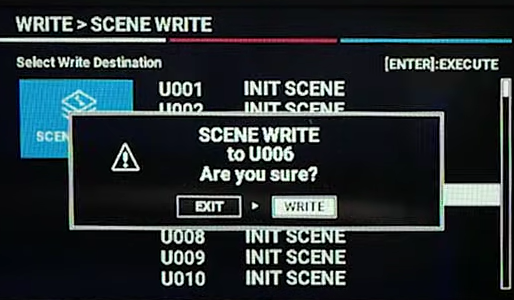

   A confirmation message appears.
6. To cancel, press the [EXIT] button.
7. Move the cursor to “WRITE” and press [ENTER] again.
   The Scene is saved.
   Important: Do not turn off the power while the display shows “Processing...” .
