The CUBE Street II can be connected to a mobile device using one of the following three methods. For all methods, adjust the volume with the [i-CUBE LINK/AUX IN] knob.
CONNECTING TO THE i-CUBE LINK/AUX IN JACK (ANALOG AUDIO)
Connect using the four-conductor mini phone cable included with the CUBE Street II. The output signal sent to the mobile device is in mono. To input audio from the mobile device only, a three-conductor mini phone cable (stereo mini phone cable) can be used instead.
CONNECTING TO THE USB PORT (DIGITAL AUDIO)
This method supports stereo audio input and output. Supported on iPhones and iPads running iOS 14 or later.

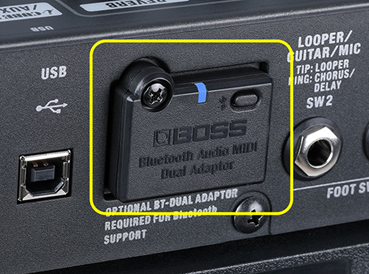

CONNECTING VIA BLUETOOTH
A Bluetooth® Audio MIDI Dual Adaptor (sold separately) is required. For setup instructions, refer to "Attaching the BT-DUAL" in the CUBE Street II Owner's Manual.
