The KATANA-Artist MkII features a stereo and dual expand function, wherein you can connect two Katana Artist MKIIs to function in stereo or as dual amplifiers. This is achieved via the EXPAND switch on the rear panel and by connecting the amplifiers using a standard TRS to TRS cable such as the RCC-3-TRTR.

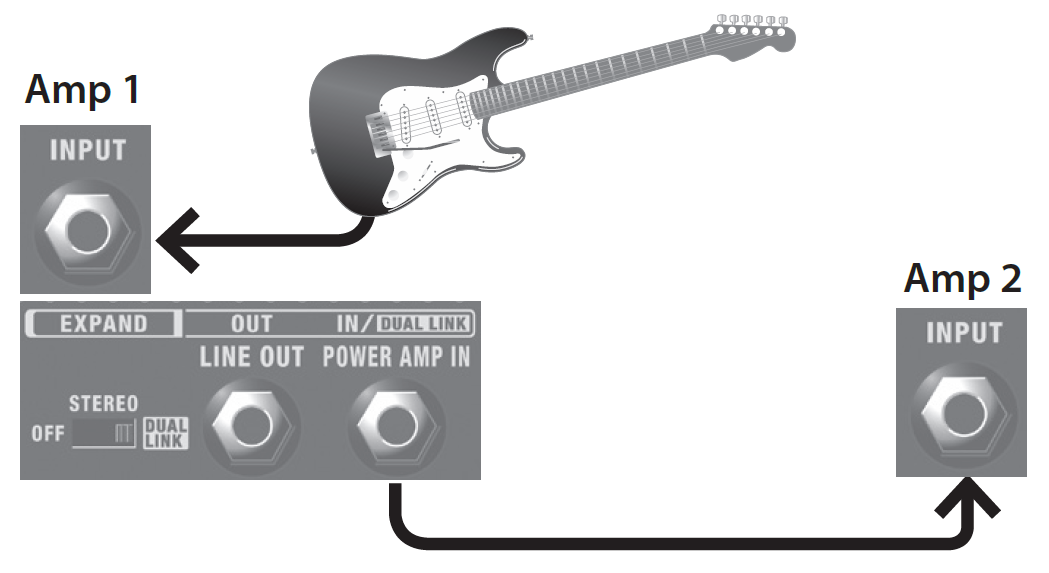

The MASTER amplifier is connected via the POWER AMP socket in to the SLAVE amplifier's INPUT socket.
The EXPAND switch functions in three positions.
- OFF - Use one KATANA-Artist Mk II unit by itself.
- STEREO - Connect two KATANA-Artist Mk II units for stereo output.
- DUAL LINK - Connect two KATANA-Artist Mk II units and use them as dual amps.

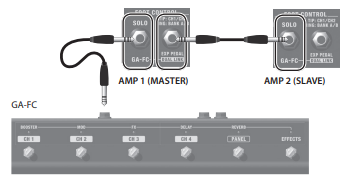

If you are using the GA-FC footswitch, you can control both amplifiers simultaneously by making the following connection.
