Follow these instructions to connect a HDMI source to your V-40HD:
Connect video cameras/ other devices capable of HDMI output to the HDMI connectors at INPUT 1 through 4.

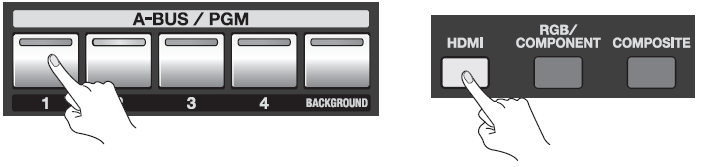

To assign HDMI input to channel 1, go to [A-BUS/PGM] and press [1], then press the [HDMI] button. When the V-40HD detects the HDMI input, the [INPUT STATUS] indicator of the channel 1 lights up.
To connect a computer capable of DVI output, use a DVI - HDMI conversion cable to make the connection to an HDMI connector.
