DJ-505: Specifying the Cross Fader Curve (System Setting)

The DJ-505 allows you to specify the curve of the cross fader.

Follow the steps below:

1. Turn off the power.

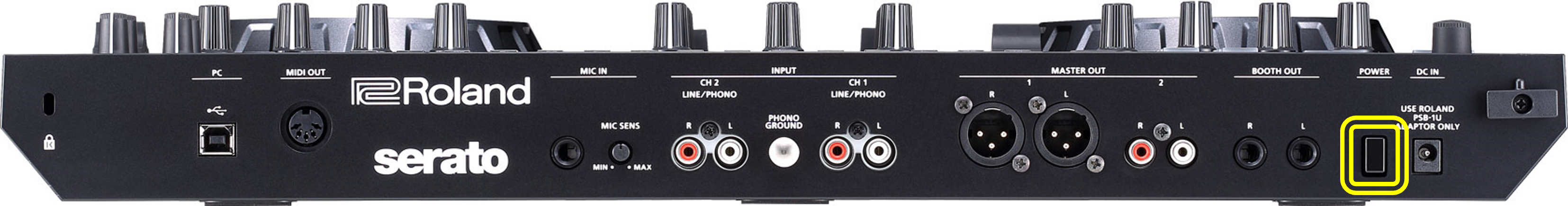

2. While holding down the [LOAD] button in the right side (R channel) of the browser section, press the [POWER] switch to turn on the power.
   The DJ-505 is in system setting mode, and the [START/STOP] button of the TR-S section is blinking.
3. Press the TR-S pad [10].

4. Use the [VALUE] knob to select LinE (Linear) or poW (Power).


5. When you’ve finished, press the blinking [START/STOP] button.
   After a few seconds, the display shows “COΠp.”
6. Turn the DJ-505’s power off and then on again.
